Case Farmall Warning Lights: What Each Symbol Means
| Light color | Red |
|---|---|
| Urgency | Red = stop immediately / Amber = service soon / Green or Blue = status only |
| Safe to drive | Red lights: No - shut down. Amber lights: finish the task, then address. Status lights: normal operation. |
| Common cause | Low engine oil pressure (most critical red light on any tractor) |
| DIY or shop | Either - many checks are owner-level; internal faults require a dealer |
Case IH Farmall utility tractors use a cluster of warning lights and indicator lamps to tell the operator when something needs attention - right now or at the next service interval. A red light means stop the machine. An amber light means act before the next work session. Green and blue lights are status indicators, not warnings.
The lights described here cover the Farmall A, B, C and U series utility models. Compact Farmall models share most of the same symbols. When in doubt, pull up your model's operator manual on the Case IH FieldOps portal - it lists every lamp with its exact wiring color and location on the instrument cluster.

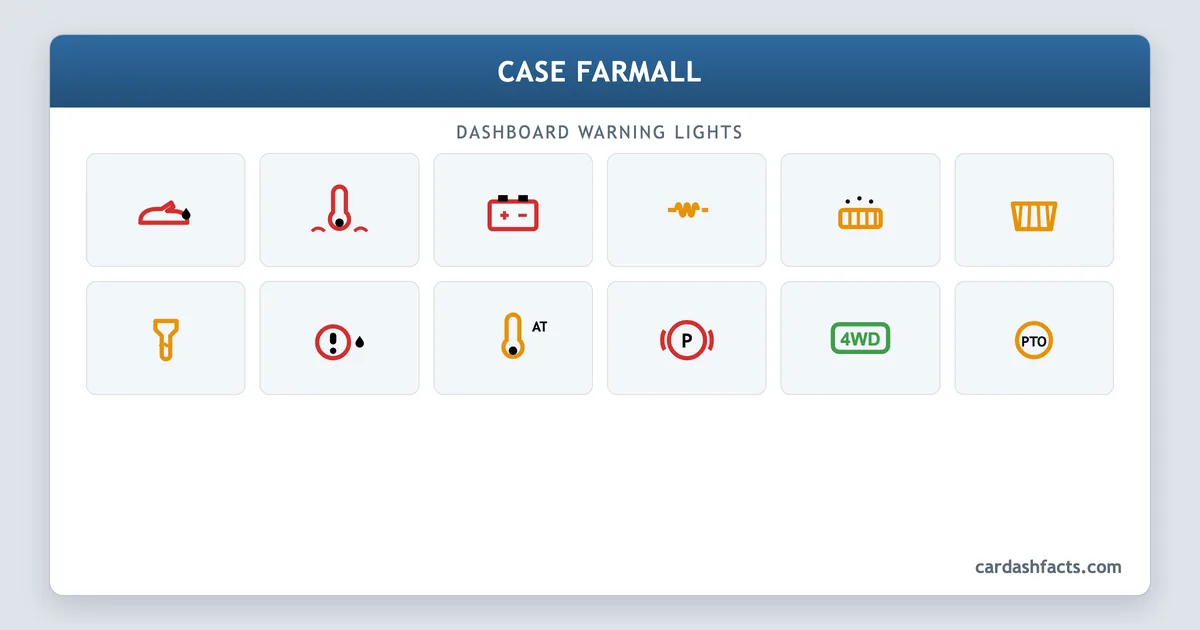

Case Farmall Dashboard Warning Lights Explained
Farmall instrument clusters group lamps by urgency. Red lamps sit at the top of the priority list - oil pressure, coolant temperature and a master stop indicator all demand you cut the engine immediately and investigate before restarting. Amber lamps cover items like air filter restriction, water in fuel, and DPF status - serious, but typically safe to finish a row or reach the yard before acting. Green and blue lamps confirm that a system is active: four-wheel drive is locked in, PTO is spinning, work lights are on.
On Tier 4B Farmall C and U series models, the digital display above the gauge cluster also shows a text or icon message alongside the lamp. Read that code and cross-reference it with the operator manual for the exact fault path. The table below covers the standard lamp set found across the Farmall lineup.
- Engine Oil PressureRed
- Meaning: Oil pressure has dropped below the safe minimum. The lubrication film on bearings and cam lobes is breaking down.Recommended action: Stop the engine immediately. Do not restart. Check oil level on the dipstick, look for leaks, and call a technician if the level is correct.
- Coolant Temperature HighRed
- Meaning: Coolant is overheating. Continued operation risks warping the head or cracking the block.Recommended action: Stop field work, idle down, and let the engine cool before shutting off. Check coolant level, clean the radiator screens, and inspect the fan belt.
- Charge / AlternatorRed
- Meaning: The alternator is not charging the battery. The tractor is running on battery reserve only.Recommended action: Check the fan/alternator belt for breakage or slippage. Finish getting to a safe parking spot, then shut down. Have the alternator and belt tested.
- Stop / Master WarningRed
- Meaning: A critical fault has been detected. On digital-display models, a fault code appears alongside this lamp.Recommended action: Stop operation immediately. Record any fault code shown on the display and contact your Case IH dealer.
- Glow Plug / PreheatAmber
- Meaning: The intake air and combustion chamber are being preheated for cold-weather starting. The system is working normally.Recommended action: Wait for this light to go out before turning the key to the start position. Cranking too early causes hard starts and excess white smoke.
- DPF RegenerationAmber
- Meaning: The diesel particulate filter is burning off accumulated soot. Exhaust temperatures are elevated during this cycle.Recommended action: Keep the engine running at normal load or at fast idle if stationary. Do not shut down mid-cycle. Stay clear of the exhaust outlet.
- High Exhaust Temperature (HEST)Amber
- Meaning: Exhaust gas temperature is elevated, typically because a DPF regen is active. A warning to keep bystanders and flammable material away from the exhaust.Recommended action: Keep people and combustible materials away from the exhaust stack. The light goes out when the regen cycle ends and temperatures return to normal.
- Air Filter RestrictionAmber
- Meaning: The primary air filter element is clogged enough to restrict airflow. Engine power and fuel economy will suffer.Recommended action: Clean or replace the primary air filter element. Check the pre-cleaner bowl and empty it if needed. Do not run the engine with the filter removed.
- Fuel Filter / Water SeparatorAmber
- Meaning: The fuel pre-filter or water separator bowl has collected enough water or contamination to trigger the sensor.Recommended action: Drain the water separator bowl before the next start. Replace the fuel filter if it has reached its service interval. Using clean, dry fuel prevents repeat trips.
- Water in FuelAmber
- Meaning: Water contamination in the fuel system has been detected at the separator sensor.Recommended action: Drain the water separator immediately. If the light stays on after draining, the main fuel filter may also be contaminated and should be replaced.
- Hydraulic System / Pressure WarningRed
- Meaning: Hydraulic system pressure is below the safe operating threshold. Implements may drop unexpectedly.Recommended action: Lower implements to the ground and stop. Check hydraulic fluid level in the reservoir. Look for leaks on hoses, fittings and the pump. Do not work under a raised implement.
- Transmission Temperature HighAmber
- Meaning: Transmission fluid is overheating. Common on Farmall models doing heavy draft work or operating in extreme heat.Recommended action: Reduce load or shift to a higher gear at lower ground speed. Stop and idle if the light stays on. Check the transmission fluid level and inspect the cooler for debris.
- Parking Brake EngagedRed
- Meaning: The parking brake is applied. On some Farmall models this light also illuminates if brake pressure is low.Recommended action: Release the parking brake before driving. If the light stays on after release, have the brake circuit pressure checked by a technician.
- 4WD EngagedGreen
- Meaning: Four-wheel drive is active. All four wheels are receiving drive torque.Recommended action: This is a status lamp, not a fault. Disengage 4WD on hard surfaces or when turning tight to prevent tire scrub and driveline strain.
- PTO EngagedGreen
- Meaning: The power take-off shaft is spinning. The implement connected to the PTO is receiving power.Recommended action: Status lamp only. Disengage the PTO before dismounting, hitching or unhitching an implement, or working near the driveline.
- Differential Lock EngagedGreen
- Meaning: The rear axle differential lock is active. Both rear wheels are locked to the same speed for maximum traction.Recommended action: Status lamp only. Release the diff lock before turning or operating on hard ground to avoid binding the axle and causing tire damage.
